Hydraulic Direct-Drive Two Post Auto Lift with Floor Plate Type
209 Hydraulic Direct-drive Two Post Auto Lift With Floor Plate TypePEAK's Series of 2 Post Lift for Chain-DrivedModelLifting Capacity208C3.5T (8,000 lbs)2083.5T (8,000 lbs)2094.0T (9,000 lbs)209X4.0T (9,000 lbs) * "C" is Clearfloor style. * 209X is stronger, wider and higher than 209 ......
Send Inquiry
Product Description
209 Hydraulic Direct-drive Two Post Auto Lift With Floor Plate Type
PEAK's Series of 2 Post Lift for Chain-Drived
* "C" is Clearfloor style.
* 209X is stronger, wider and higher than 209 in construction.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.

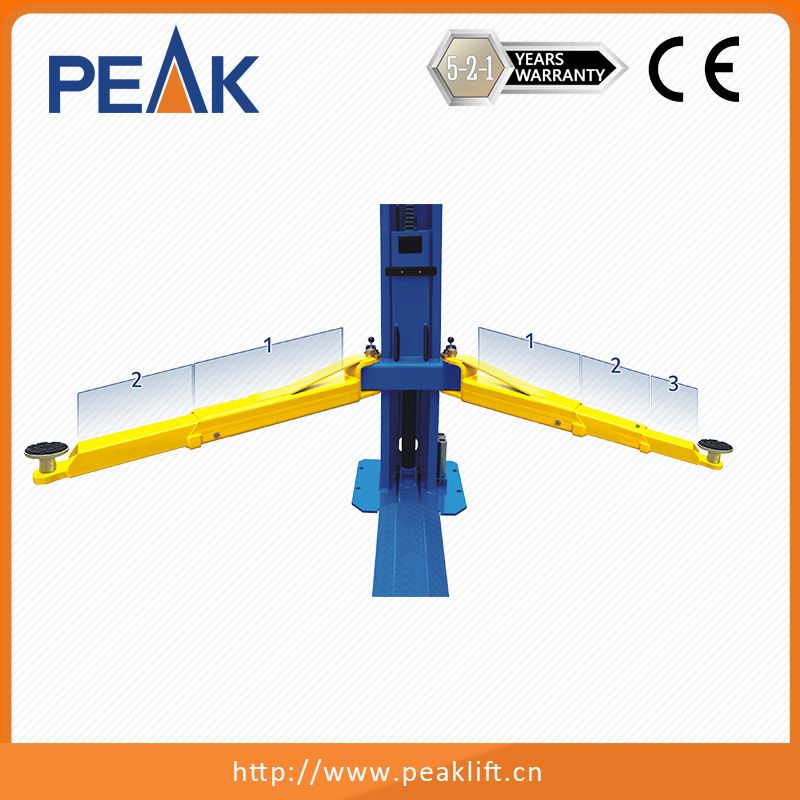

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209 Single Point Safety Release Two Post Auto Lift
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK's Series of 2 Post Lift for Chain-Drived
| Model | Lifting Capacity |
| 208C | 3.5T (8,000 lbs) |
| 208 | 3.5T (8,000 lbs) |
| 209 | 4.0T (9,000 lbs) |
| 209X | 4.0T (9,000 lbs) |
* 209X is stronger, wider and higher than 209 in construction.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 5/16" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Stackable rubber pad with 1.5" and 2.5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209 Single Point Safety Release Two Post Auto Lift

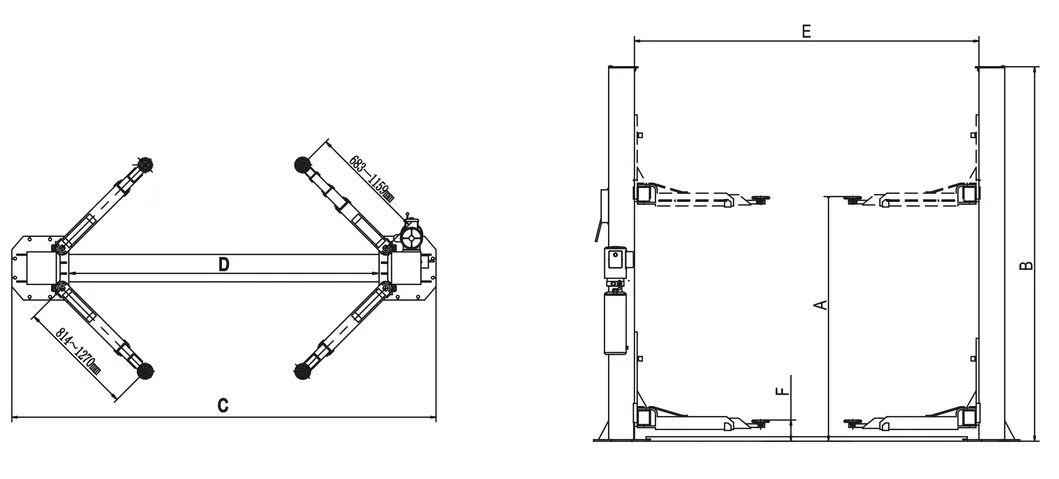

| Model | 209 | ||
| Style | Thin Plate Type Chain-drived | ||
| Lifting Capacity | 4.0T (9,000lbs) | ||
| Lifting Time | 45 Seconds | ||
| A | Lifting Height | 1815-1917mm (71 1/2" - 75 1/2") | |
| B | Overall Height | 2742mm(108") | |
| C | Overall Width | 3350mm(132") | |
| D | Drive-Thru Clearance | 2513mm(99") | |
| E | Width Between Columns | 2780mm(109 1/2") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 620kg(1,366lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2838 X 450 X 765 mm | ||
| QTY of Container | 25 Units/20'GP | ||
| 50 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
