China High Precision 2 Post Hydraulic Elevator with 9000lbs Capacity (209C)

Product Description

209C High Precision 2 Post Hydraulic Elevator With 9000LBS Capacity
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived

Model	Lifting Capacity
209C	4.0T (9,000 lbs)
209CH	4.0T (9,000 lbs)

* "C" is planer-type style.
* 209CH is higher than 209C.

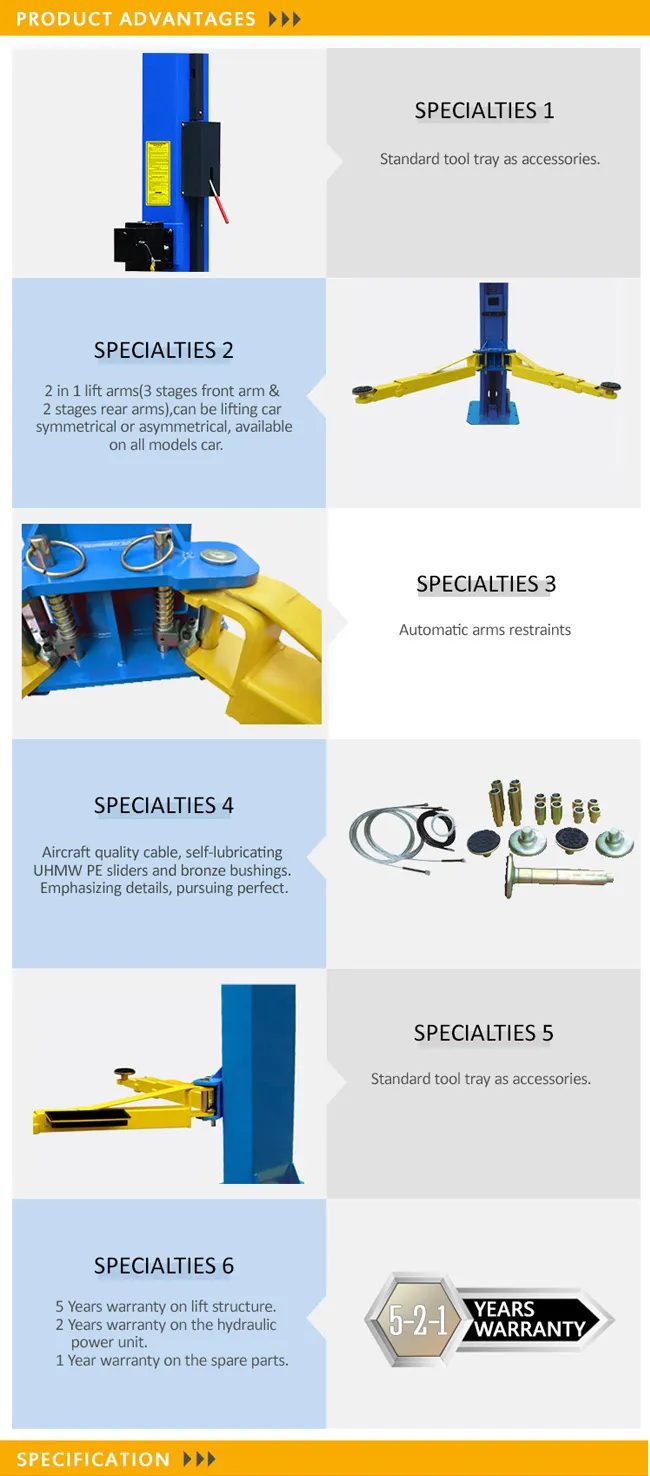

Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.

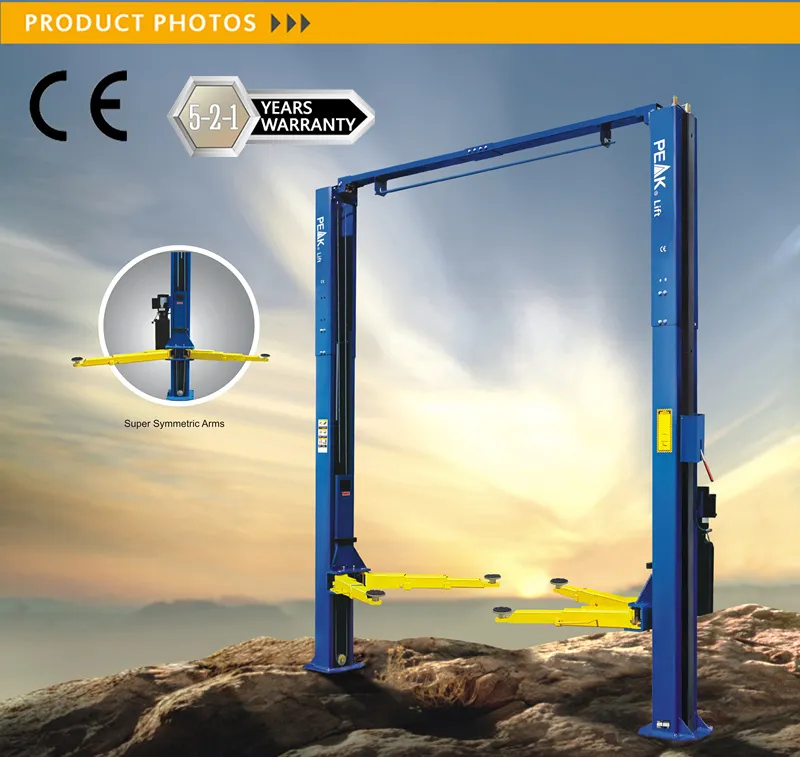

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).

High Precision 2 Post Hydraulic Elevator with 9000lbs Capacity (209C)

209C High Precision 2 Post Hydraulic Elevator With 9000LBS Capacity

Model		209C
Style		Planer-type Direct-drived
Lifting Capacity		4.0T (9,000lbs)
Lifting Time		52 Seconds

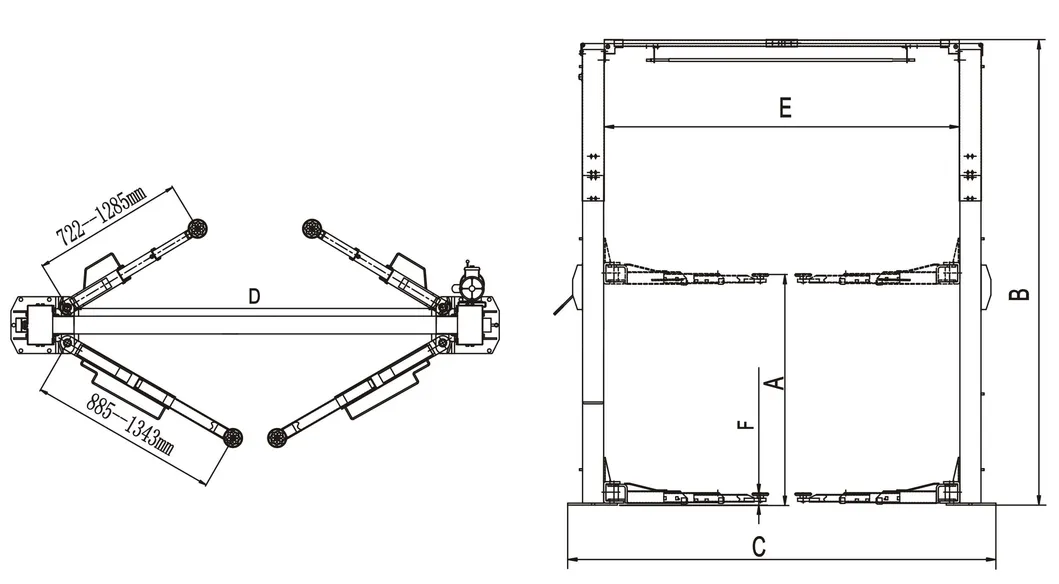

A	Lifting Height	1815-2044mm (71 1/2" - 80 1/2")
B	Overall Height	3621mm/3821(141 1/2" / 150 1/2")
C	Overall Width	3428mm(135")
D	Drive-Thru Clearance	2528mm(99 1/2")
E	Width Between Columns	2850mm(112 1/4")
F	Minimum Pad Height	90mm(3 1/2")
Gross Weight		673kg(1,483lbs)
Motor		2.0/3.0HP
Packing Dimension		2815 X 450 X 755 mm
QTY of Container		25 Units/20'GP
QTY of Container		50 Units/40'GP
