China Manufacturer Manual Release Two Post Lift 4 Tons (209C)
China Manufacturer Manual Release two post lift 4 Tons (209C)PEAK's Series of 2 Post Lift for Hydraulic Direct-DrivedModelLifting Capacity209C4.0T (9,000 lbs)209CH4.0T (9,000 lbs)2104.5T (10,000 lbs)210C4.5T (10,000 lbs)210CX4.5T (10,000 lbs)210SAC4.5T (10,000 lbs)211C5.0T (11,000 lbs)211CH5.0T ......
Send Inquiry
Product Description

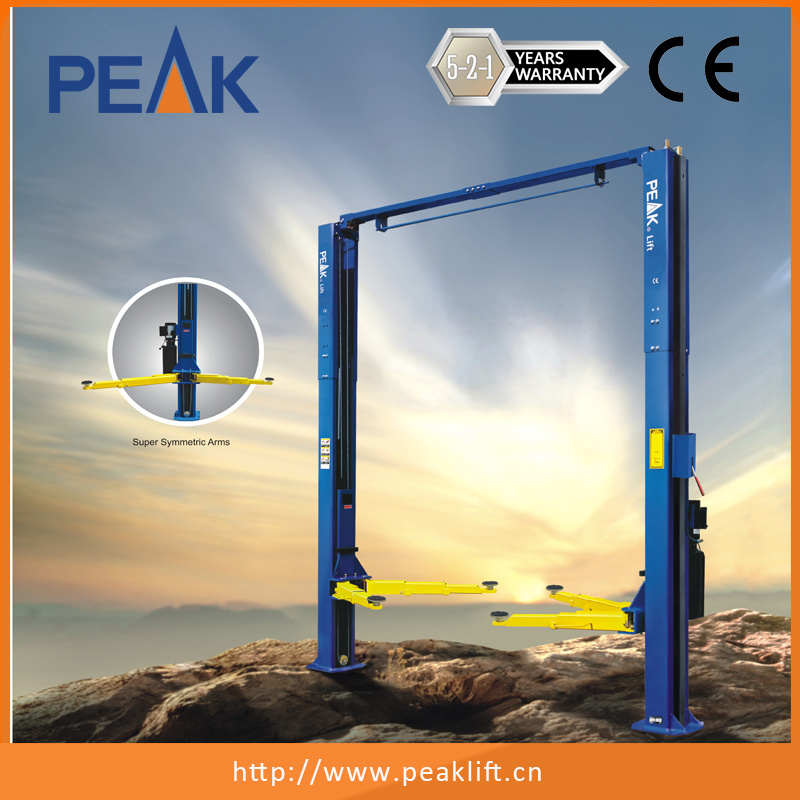

China Manufacturer Manual Release two post lift 4 Tons (209C)
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
* "C" is clean-floor style.
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.

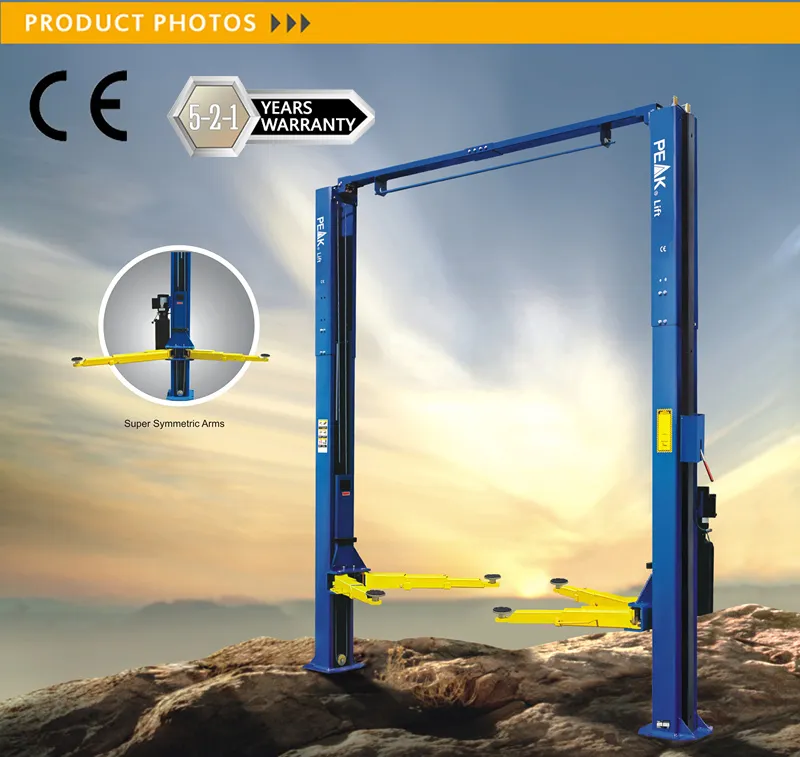

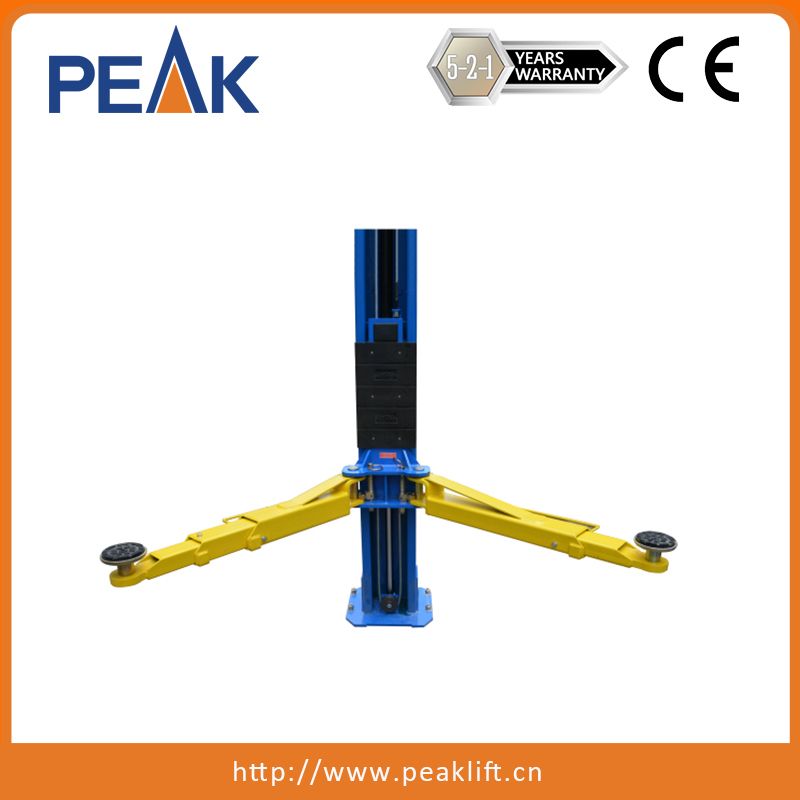

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.

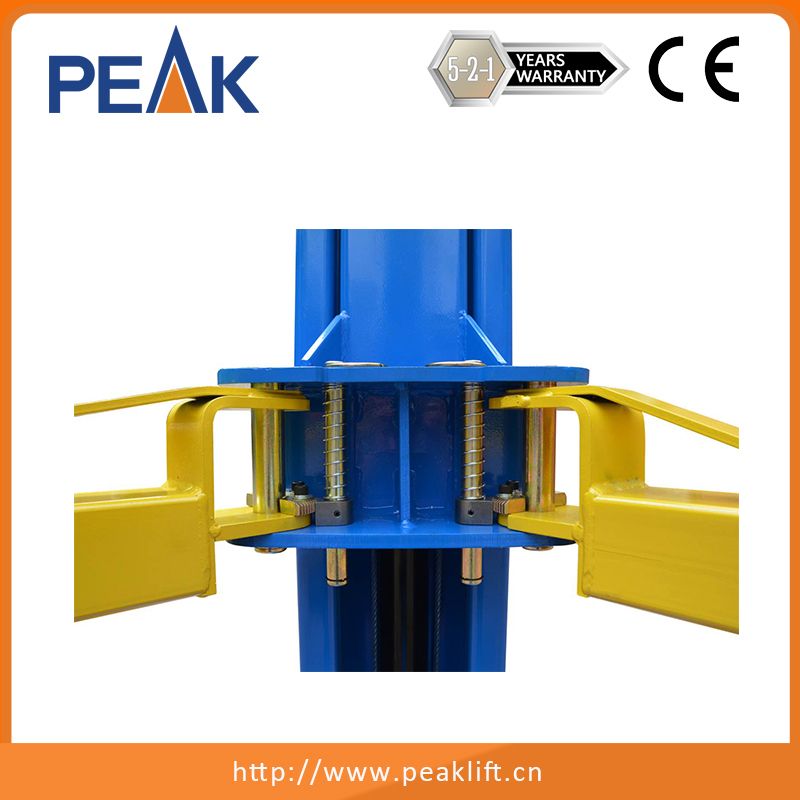

• Automatic arms restraints.
• Hydraulic power unit.
• Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
China Manufacturer Manual Release two post lift 4 Tons (209C)
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
| Model | Lifting Capacity |
| 209C | 4.0T (9,000 lbs) |
| 209CH | 4.0T (9,000 lbs) |
| 210 | 4.5T (10,000 lbs) |
| 210C | 4.5T (10,000 lbs) |
| 210CX | 4.5T (10,000 lbs) |
| 210SAC | 4.5T (10,000 lbs) |
| 211C | 5.0T (11,000 lbs) |
| 211CH | 5.0T (11,000 lbs) |
| 212 | 5.5T (12,000 lbs) |
| 212C | 5.5T (12,000 lbs) |
| 215C | 6.8T (15,000 lbs) |
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
• Automatic arms restraints.
• Hydraulic power unit.
• Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
China Manufacturer Manual Release two post lift 4 Tons (209C)

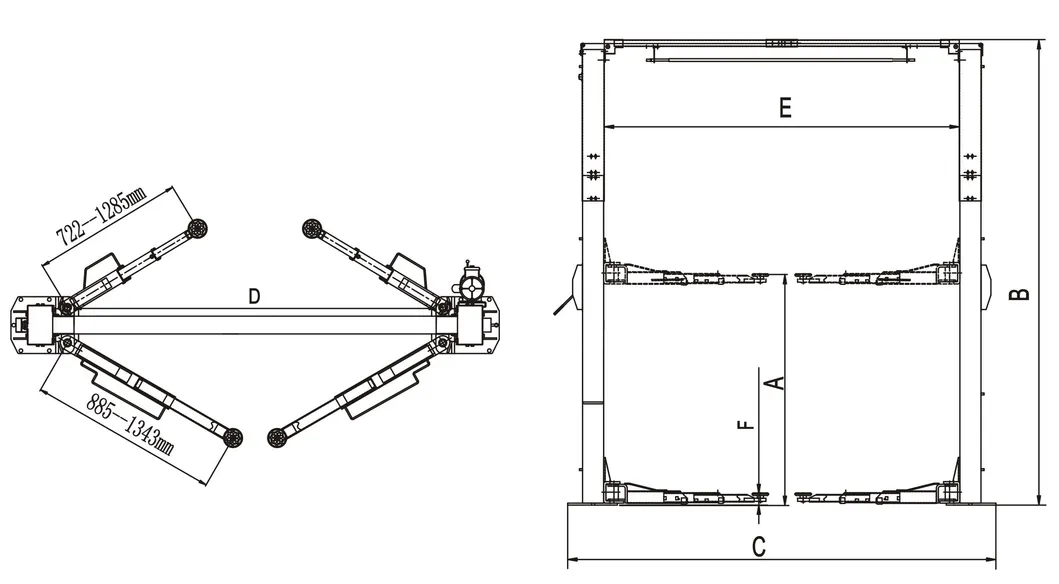

| Model | 209C | ||
| Style | Clean-floor Direct-drived | ||
| Lifting Capacity | 4.0T (9,000lbs) | ||
| Lifting Time | 52 Seconds | ||
| A | Lifting Height | 1815-2044mm (71 1/2" - 80 1/2") | |
| B | Overall Height | 3621mm/3821(141 1/2" / 150 1/2") | |
| C | Overall Width | 3428mm(135") | |
| D | Drive-Thru Clearance | 2528mm(99 1/2") | |
| E | Width Between Columns | 2850mm(112 1/4") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 673kg(1,483lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2815 X 450 X 755 mm | ||
| QTY of Container | 25 Units/20'GP | ||
| 50 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
