Mechanical Articulating Joint Rod End Plain Bush Bearing

As the professional manufacturers, Top Bearings would like to provide you Mechanical Articulating Joint Rod End Plain Bush Bearing. And we will offer you the best after-sale service and timely delivery.

As the professional manufacturers, Top Bearings would like to provide you Mechanical Articulating Joint Rod End Plain Bush Bearing. And we will offer you the best after-sale service and timely delivery.

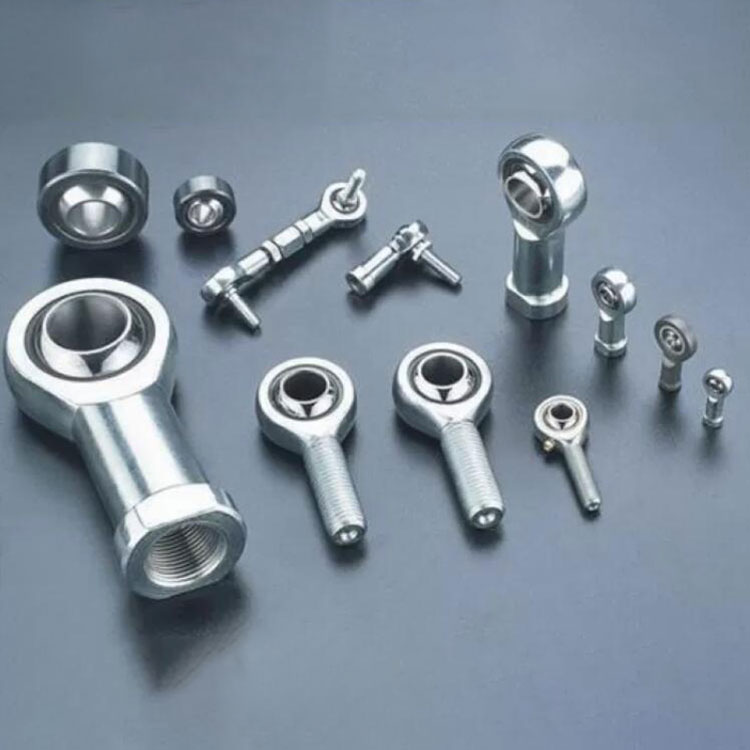

Rod Ends is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required, and where a clevis end (which requires perfect 90 degree alignment between the attached shaft and the second component) is unsuitable. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

The hemi joint's advantage is that the ball insert permits the rod or bolt passing through it to be misaligned to a limited degree (an angle other than 90 degrees). A link terminated in two hemi joints permits misalignment of their attached shafts (viz., other than 180 degrees) when used in tension. When used in compression, the through-rods are forced to the extreme ends of their ball's misalignment range, which cocks the link at an oblique angle.
